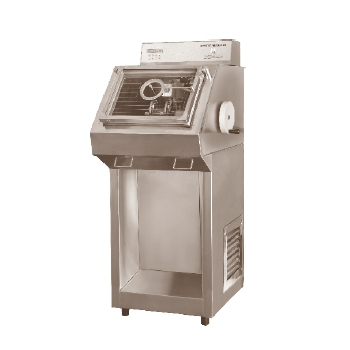

MANUAL CRYOSTAT MICROTOME

CRYOCUT: The cooling system incorporates P.I.D Temperature Controller and a sealed compressor to ensure quick cooling up to -30°C and trouble free performance. Automatic Specimen Retracting Device prevents damage to the specimen on the return upward stroke and assures uniform perfect sectioning. A circular slide system is provided for easy removal of section with minimal disturbance of iso thermal conditions. Large stainless steel chamber permits adequate storage facilities for housing of retracting microtome and accessories. With feed range from 0 to 20 microns in step of 1 micron each. It incorporates retracting mechanism for best result in sectioning a wide variety of tissues.

Technical Specifications:

  1. Section thickness : 1-20pm in 1pm steps
  2. Section size :40x50mm
  3. Temperature range : up to -30° C accuracy +/- 2° C
  4. Chamber size : Z2" x 15" x 10"
  5. Cabinet size : 25" x 28" x 50"
  6. Instrument port : 4" diameter
  7. Window opening : 14.5" x 9"
  8. Refrigeration : Hermetically sealed and thermostatically controlled
  9. Weight : Approx. 85 Kg

Supplied complete with a razor 120mm long with back handle, honing stone, oil can, wooden Cabinet, freezing attachment & dust cover

CRYOCUT SENIOR is suitable for lower temperature range up to -40°C with electronic temperature control and digital display.
