SEMI AUTOMATIC CRYOSTAT MICROTOME

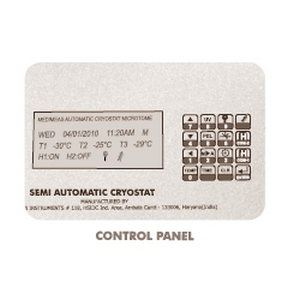

SEMI AUTOMATIC CRYOSTAT MICROTOME: The cryostat is ` ergonomically designed keeping in view user needs and safety. It incorporates an optimized cooling system (double compressor) with rapid specimen freezing and smooth precise orientation for high quality sectioning in histology, pro-environment refrigerant, a rapid refrigeration mode, a peltier unit, and a LCD Screen which displays data such as sample travel, section thickness and temperature. It can be easily programmed for both start and stop. Easy to operate control panel with controls for temperature and time. UV is used for disinfection. Equipped with a closed drainage system that ensures collection of condensed and defrost fluids in a container

Salient Features:

  1. Specimen retraction function protects the specimen from blade injury
  2. Trimming/Sectioning button makes it easy to switch to the desired mode
  3. Rapid Refrigeration Mode allows desired temperature drop in 60mins
  4. Working area is easy to clean and disinfect
  5. Eas to read LCD screen

Technical Specifications:

  1. Section Thickness Range : 1um-60um, 1pm-10um, in 1um increment, 10pm-20um, in 2pm increments, 20pm-60um, in 5pm increments
  2. Trimming Range : 10pm-300pm in 10pm increments
  3. Specimen Retraction : 5-75um in 5pm increments
  4. Lowest Temp. of Peltier Unit : -50°c
  5. Cooling Downtime to -30°c : 60 mins
  6. Maximum Specimen Size : 35mm x 35mm
  7. Specimen Vertical Stroke : 65mm
  8. Specimen Horizontal Feed : 25mm
