PROJECTION MICROSCOPE

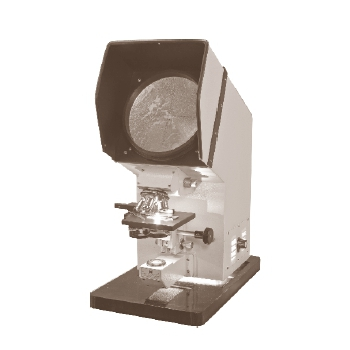

PROJECTION MICROSCOPE (with HALOGEN LAMP): (As per MP-3 Metronex, Warszawa, Lenameter). A highly advanced projection equipment providing additional advantage for specimen measurements. Equipped with a Bright Halogen Lamp 195 mm dia, a graduated screen ROTATABLE through 360° and a built in movable compensating eye piece to provide

  1. Mag. Range : 125X to 1000X with following four objectives alongwith
  2. Objectives : 4 (Nos.)- 5X, 10X, 20X & 40X/45X.

Complete with one stage micrometer for measurements & a dust cover

SENIOR PROJECTION MICROSCOPE (with HALOGEN LAMP) _ All specifications as per model MPM-585 but equipped with a latest set of IMPORTED DIN- STANDARD TC-SERIES Optics.

  1. Magnification Range : 10OX to 1500X
  2. Eye Piece : WF10x(1Pair)
  3. Objectives : 5 Nos-4/5X, 10X, 20X ,45X & 60X

Complete with one stage micrometer for measurements & a dust cover

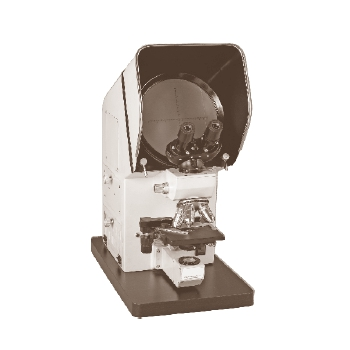

TRINOCULAR PROJECTION MICROSCOPE : Same as MPM- 585A, but supplied with Trinocular Head and pointer arrangement on screen to be used as a Binocular cum Projection microscope. It comes with latest sets of Imported Din-standard Optics TC-SERIES

  1. Magnification Range : 100X to 1500X
  2. Eyepiece : WF 10X(1 Pair)
  3. Objectives ( 5 Nos.) : 4/5X, 10X, 20X, 45X & 60X

Complete with one stage micrometer for measurements & a dust cover
